  • Sinotruk Tractor Truck 260HP

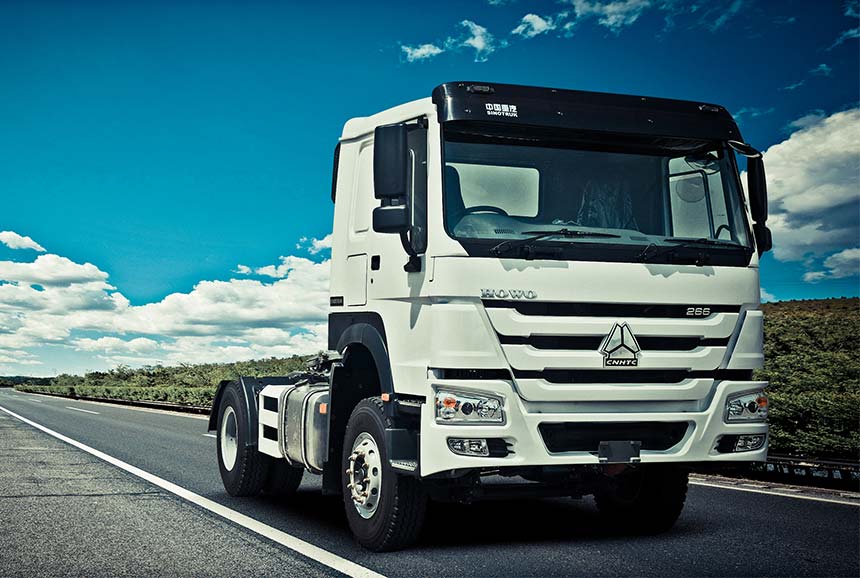

Sinotruk Tractor Truck 260HP

Product Details

ModelSINOTRUK 4X2 TRACTOR HEAD ZZ4188K3612C1R
Engine

Make: YUCHAI

Model: YC6A260-33, Euro II.

4 stroke direct injection diesel engine.

6 cylinder in line, water cooling, turbocharged with intercooler.

Maximum output: 260 HP (191 kW) @ 2300 rpm

Maximum torque: 1000 Nm @ 1300 - 1600 rpm

Number of cylinder(s): 6

Displacement: 7.255 L

Bore X Stroke: 108 mm X 132 mm

Compression ratio: 17.5 : l

Specific fuel consumption: 196 g/kW·h

ClutchSingle dry plate dry coil-spring clutch, hydraulically operating with air assistance. Plate diameter 430 mm.
Transmission

ZF5S-111GP, 9 forward gears and 1 reverse gear with synchronizer.

Ratio: 9.73, 6.38, 4.65, 3.43, 2.50, 1.85, 1.36, 1.00, 0.73, 11.6®

Propeller ShaftDouble universal joint propeller shaft with gear-shaped coupling flange.
Front AxleModel: 153, loading capacity 6 ton, drum brake.
Rear AxleModel: 457, drive through reduction and planetary reduction, loading capacity 13 ton. Ratio: 6.33
Chassis

Frame: Double layer frame 865 x 280 x 80 x (8 + 4)

Front suspension: Semi-elliptic leaf springs with hydraulic telescopic double-action shock absorbers and stabilizer

Rear suspension: Semi-elliptic leaf springs with bogie spring and stabilizer with one spare wheel

SteeringZF8098. Power steering.
Brake

Service brake: Dual circuit compressed air brake.

Parking brake: Spring energy compressed air operating on rear wheels.

Auxiliary brake: Engine exhaust valve brake.

Tyre

Rim: 7.50V-20

Tyre: 10.00-20

CabinD13 cab body, hydraulically tiltable to the front, 2-arm windscreen wiper system with 3 speeds, laminate windscreen, casted-in radio aerial, adjustable driver's seat and rigid adjustable co-driver's seat, heating and ventilation system, stereo radio/cassette recorder, sun visor, adjustable steering wheel, air horn, single berth with 4-point support fully floating suspension and shock absorber, air conditioner, safety belt.
Electrics

Operating voltage: 24V, negative grounded.

Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light.

Dimensions in mm

Wheelbase

Front track

Rear track

Front overhang

Rear overhang

Approaching angle

Departure angle

Overall dimensions

3600

2050

1860

1430

895

19°

13°

5925 X 2495 X 3050

Weight in kg

Dead weight

Gross vehicle weight

Front axle loading capacity

Rear axle loading capacity

5830

29000

6000

13000

Performance

Maximum speed

Maximum grade ability

Ground clearance

Turning radius

75 km/h

35 %

266 mm

21 m

Weights, dimensions and features are given for reference and may be modified according to the choice of certain options. The manufacturer reserves the right to modify the above specifications without prior notification.
