  • Light Cargo Truck-ZZ1047D3414D1R45

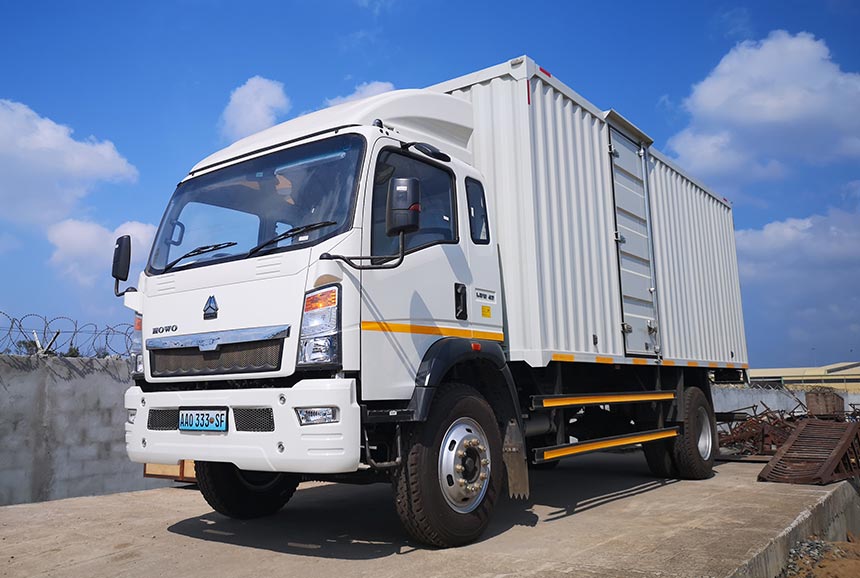

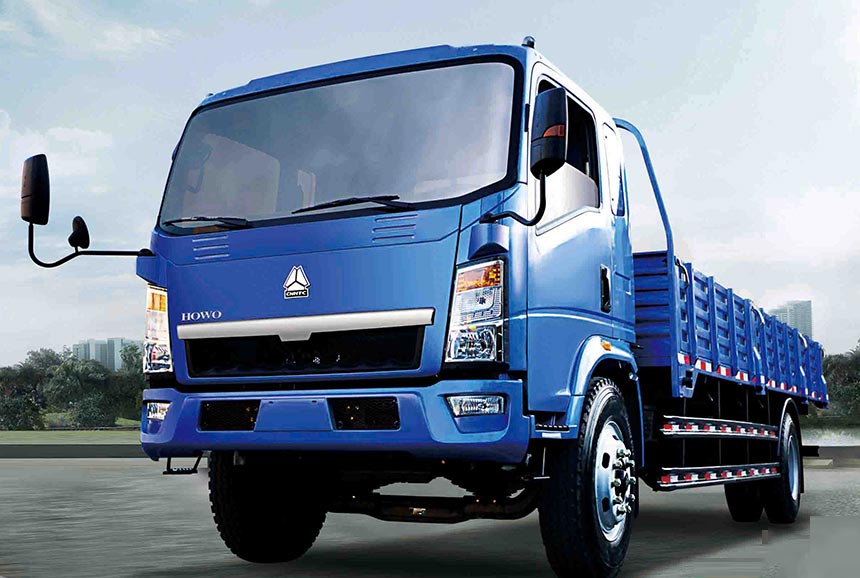

Light Cargo Truck-ZZ1047D3414D1R45

Product Details

ModelZZ1047D3414D1R45
Engine

Manufacture: YUNNEI

Model: YN4102QBZL, Euro II emission standard, 4-stroke direct injection diesel engine. 4 cylinder in-line with water cooling, turbo-charging and intercooling.

Maximum output:116 HP (85 Kw) @ 3000 rpm according to DIN

Maximum torque: 330 Nm @ 1600 - 2000 rpm

Number of cylinder: 4

Displacement: 3.76L

Bore: 102mm

Stroke: 115mm

Compression ratio: 17.2 hp/L

ClutchSingle plate dry diaphragm spring clutch, diameter 380mm, hydraulically operating
Transmission

WLY Transmission, model WLY6T100, synchromesh, 6 forward & 1 reverse

Ratio: 6.01,3.29,1.94,1.306,1.0,0.795, 5.455(R)

Front AxleForging forming of front axle l-beam, to guarantee the stiffness and high strength
Rear AxleMature punching welding axle and pressed axle housingRatio: 4.875, 5.375
Chassis

Frame: Ladder frame with section of 195 X 65 X 6mm , all cold riveted cross members

Front suspension: 11 leaf springs, shock absorbers and stabilizer

Rear suspension: 9 main leaf springs + 7 rice leaf springs,

Spare wheel carrier: with one spare wheel

Fuel tank: 120 L

Steering

Hydraulic steering with power assistance

Ratio: 18.85 : 1

Brakes

Service brake: dual circuit compressed air brake

Parking brake (Emergency brake): spring energy, compressed air operating on rear wheels (optional)

Wheel & Tyre

Rim: 5.50F-16, 6 hole-steel

Tyre: 7.00R16 TUBE

Option: 7.5R16 TUBE

CabSingle cab with one sleeper,45°hydraulically tilt able to the front, 2-arm windscreen wiper system with three speeds, adjustable driver’s seat, with heating and ventilation system, interior double sun visor, sunroof, radio and USB interface, safety belts, adjustable steering wheel, horn.
Electrics

Operating voltage: 24V, negative grounded

Starter: 24V, 3.6KW

Battery: 24V, 120Ah

Horn, headlamps, fog lights, indicators and reverse light

Instrument Panel

Active central controller with indicators, integrating daily check on-board.

Combined indicators of compressed air pressure, coolant temperature, engine oil pressure, etc.

Dimensions in mm

Wheelbase

Front wheel track

Rear wheel track

Front overhang

Rear overhang

Approach angle

Departure angle

Overall dimensions

Body size

3360

1605

1540

1160

1475

18°

18°

5995 X 2250 X 2450

3850 X 2050 X 400

Weight in kg

Payload

Dead weight

Gross vehicle weight

5000

3300

6495

Performance

Maximum speed

Maximum grade ability

Minimum ground clearance

Minimum turning circle

Fuel consumption

90 km/h

25%

210 mm

14 m

14.8 L/100km

Weights, dimensions and features are given for reference and may be modified according to the choice of certain options. The manufacturer reserves the right to modify the above specifications without prior notification.
