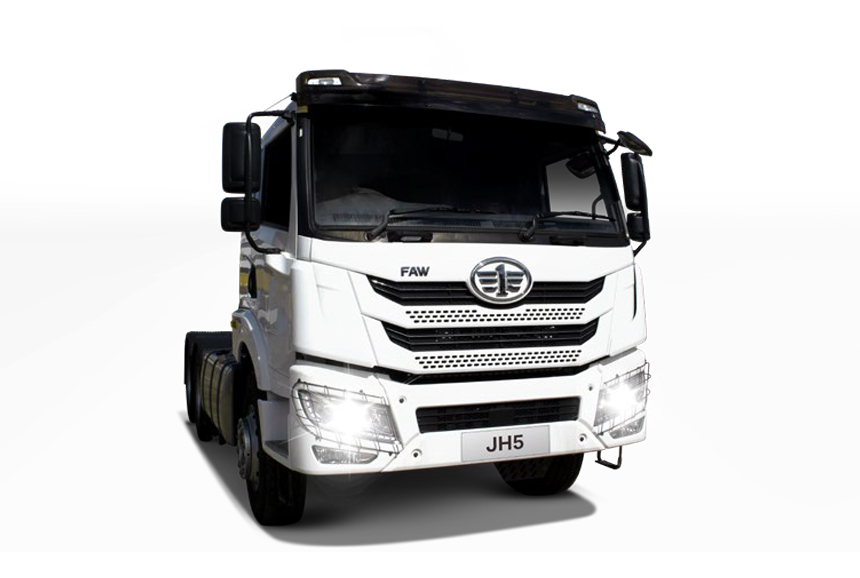

Product Details
PARAMETERS
MASS
Curb Weight of Chassis (kg) 8760
Max. Axle Load Distribution
(Front/ kg) 7000
(Rear/ kg) 13000* 2
Max. Drawing Capacity (kg) 49337
Max. Load Capacity at Fifth Wheel (kg) 16079
DIMENSIONS
Length (mm) 6793
Width (mm) 2550
Height (mm) 2960
Wheel Base (mm) 3150+1350
Wheel Track - Front/ Rear (mm) 2020/1830
Overhang - Front/ Rear (mm) 1493/800
Front Turning Radius - R1 (mm) 2300
Rear Clearance Radius - R2 (mm) 2200
5th Wheel Height - unladen (mm) 1310
PERFORMANCE
Max. Speed (km/h) 97
Max. Grade Ability (%) 34
Approach Angle (°) 23
Departure Angle (°) 40
Parking Brake Grade Angle (%) 20
Min. Ground Clearance (mm) 270
Min. Steering Radius (m) 13.5
Braking Distance - GCW 50t at 30km/h (m)
Sliding Distance - GCW 50t at 50km/h (m)
Fuel Consumption - GCW 50t (L/100km) 43
Fuel Tank Capacity (L) 600
STRUCTURES
CAB
Category New J5P - Flat roof/ Flat floor/Full floating/ Single sleeper/ With sunroof/ With AC
Seats 2 (Air seat for driver)
FRAME
Structures Side rails/ Punching/ Riveted
Main Rail Section (mm) 300*80*(8+5)
Suspension Type Leaf spring
BODY
Fifth Wheel 2 inch, Casting Steel
CONFIGURATION
ENGINE
Model WEICHAI WP10.380E32
Type 6 in-line/ Water-cooling/ Four stroke/ Air inter-cooling/ Direct injection/ Turbo charged
Displacement (L) 9.726
Max Output Power (kw @ rpm) 280 @ 2200
Max Torque (Nm @ (r/min)) 1460 @ 1200-1600
Horsepower (Ps) 380
Emission Level Euro Ⅱ
TRANSMISSION
Model FAST 12JSD160T/ 12F & 2R
Type Direct gear/ Full synchronizer/ Twin countershaft/ Center distance increased
Forward Gear Ratio i1=15.53; i2=12.08; i3=9.39; i4=7.33; i5=5.73; i6=4.46; i7=3.48; i8=2.71; i9=2.1;i10=1.64; i11=1.28; i12=1
Reverse Gear Ratio Ri1=14.86; Ri2=3.33
CLUTCH
Model EATONФ430
Type Dry type/ Single plate/ Cast aluminum pump/ Hydraulic controlled and air auxiliary power/ WABCO booster
STEERING
Type Recycle ball type/ Hydraulic power assisted steering
Ratio 23:1
REAR AXLE
Model 457 stamping-weld axles
Type Single reduction/ Max. output torque 40000Nm
Reduction Ratio 4.444
BRAKE
Driving Brake Dual circuit/ Air pressure brake/ With brake condenser
Parking Brake Manual valve spring cylinder storage brake
Auxiliary Brake Exhaust brake
WHEEL
Tire Model 12R22.5-18 or 315/80R22.5-18
Tire Rim 9.00×22.5
Tire Type Radial/ Tubeless/ With one spare tire
OTHER ADVANTAGES
Valves (all WABCO) Guard plate for water tank
All steel front bumper Operating soft shaft (TUTHILL)
Maintenance-free batteries (CAMEL) Full LCD dashboard
Aluminum alloy air cylinder 3 in 1 key
OPTIONAL
Air deflector/ ABS/ etc.
