  • Sinotruk Howo Tipper Truck 8x4 371HP

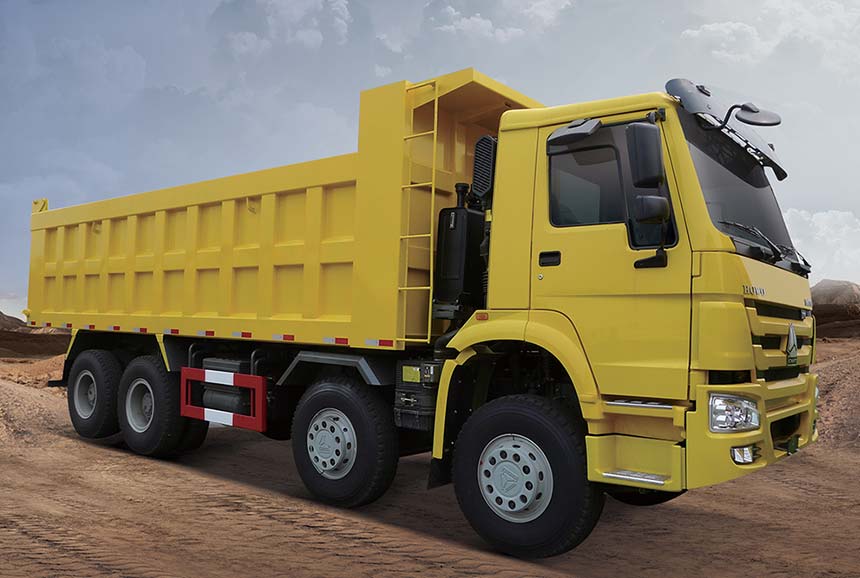

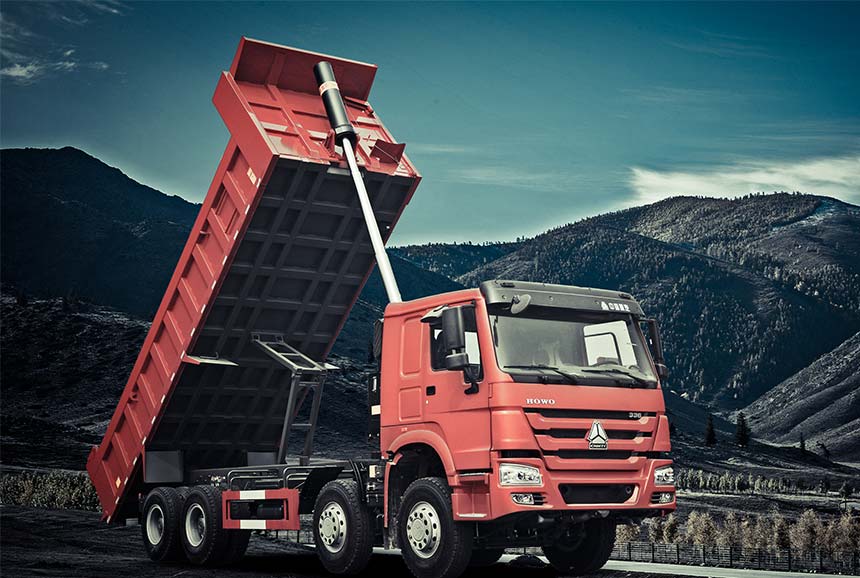

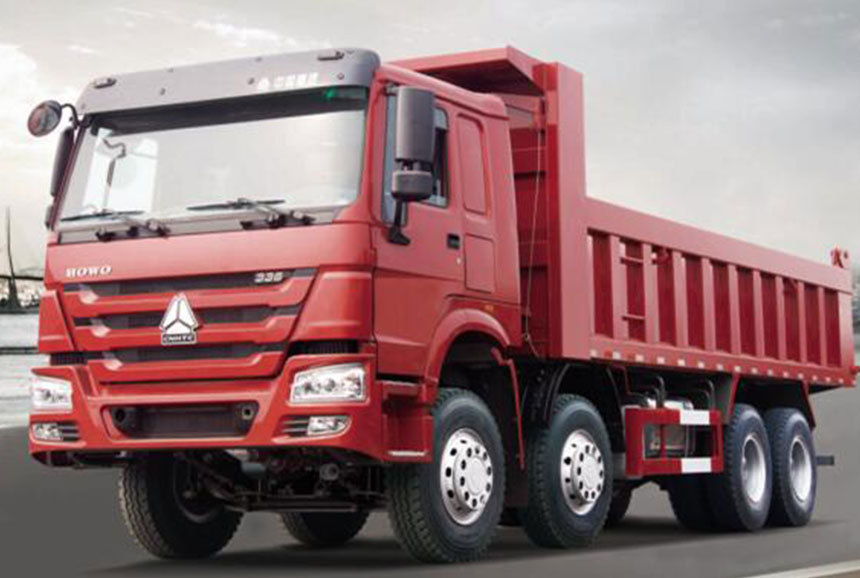

Sinotruk Howo Tipper Truck 8x4 371HP

Product Details

ModelSINOTRUK HOWO 8X4 DUMP TRUCK ZZ3317N3061
Engine

Make: SINOTRUK

Model: WD615.47, Euro II emission standard

4 stroke direct injection diesel engine

6 cylinder in-line with water cooling, turbo-charging & intercooling

Maximum output: 371 HP (273 Kw) @ 2200 rpm according to DIN

Maximum torque: 1500 Nm @ 1100 - 1600 rpm

Bore: 126mm

Stroke: 130mm

Displacement: 9.726L

Compression ratio: 17:1

Specific fuel consumption: 195g/kWh

Engine oil filling quantity: 23L

Cooling system filling quantity (long-term filling): 40L

Thermostat opening temperature: 71oC

Twin cylinder air compressor. Rigid fan

Option: WD615.69

ClutchSingle plate dry diaphragm spring clutch, diameter 430(B) mm, hydraulically operating with air assistance
Transmission

HW19710, 10 forward and 2 reverse

Ratio:14.28 10.62 7.87 5.88 4.38 3.72 2.43 1.80 1.34 1.00 13.91/3.18(R)

Propeller ShaftDouble universal joint propeller shaft with gear-shaped coupling flange
Front AxleHF9 Drum brake. Steering with double T-cross section
Rear AxleHC16, drive through reduction and planetary reduction, Ratio: 5.73
Chassis

Frame: U-profile parallel ladder, all cold riveted cross members

Front suspension: 10 semi-elliptic  leaf  springs  with  hydraulic  telescopic  double-action  shock absorbers and stabilizer

Rear suspension: 12 semi-elliptic leaf springs with bogie spring and stabilizer

Fuel tank: 300 L fuel tank

Spare wheel carrier: with one spare tire

SteeringZF8098, hydraulic steering with power assistance
Brake

Service brake: dual circuit compressed air brake

Parking brake (Emergency brake): spring energy, compressed air operating on rear wheels

Auxiliary brake: engine exhaust brake

Option: ABS

Wheel & Tyre

Rim: 8.5-20,10 hole-steel

Tyre: 12.00R20-18PR

Option: 12R22.5, 315/80R22.5

CabStandard cab without berth, all steel forward control, 55° hydraulically tiltable to the front, 2-arm windscreen wiper system with 3 speeds, laminate windscreen, with casted-in radio aerial, adjustable driver’s seat and rigid adjustable co-driver’s seat, heating & ventilation system, with stereo radio/cassette recorder, sun visor, and adjustable steering wheel, air horn, 4-point support fully floating suspension and shock absorber, air conditioner, safety belt.
Electrics

Operating voltage: 24V, negative grounded

Starter: 24V, 5.4KW

Alternator: 3-phrase, 28V, 1540W

Battery: 2 X 12V, 165Ah

Cigar-lighter, horn, headlamp, fog light, brake lights, indicators and reverse lamp

Dimensions in mm

Wheelbase

Front wheel track

Rear wheel track

Front overhang

Rear overhang

Approach angle/ Departure angle

Overall dimensions

Body size

1800+3000+1350

2022

1830

1500

2080

19o / 22o

9730 X 2496 X 3170

6800 X 2300 X 1500

Weight in kg

Dead weight

Gross vehicle weight

Front axle loading capacity

Rear axle loading capacity

15030

38000

9000 X 2

16000 X 2

Performance

Maximum speed

Maximum grade ability

Minimum ground clearance

Minimum turning circle

78 km/h

35%

314 mm

22.8 m

Weights, dimensions and features are given for reference and may be modified according to the choice of certain options. The manufacturer reserves the right to modify the above specifications without prior notification.
