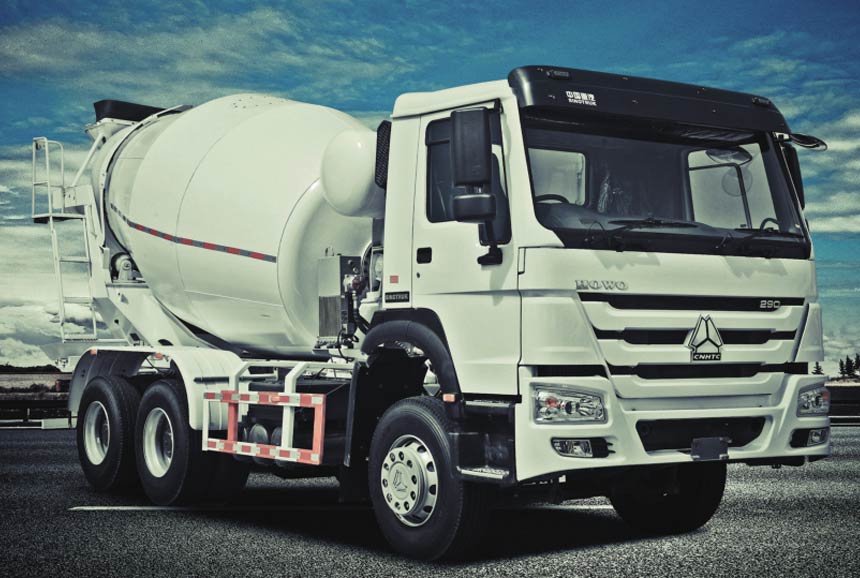

|Model||SINOTRUK HOWO 6X4 CONCRETE MIXER ZZ5257GJBN3647D1|
Model: WD615.87, Euro II.
4 stroke direct injection diesel engine.
6 cylinder in-line, water cooling, turbocharged with intercooler.
Maximum output: 290 HP (213 kW) @ 2200 rpm
Maximum torque: 1160 Nm @ 1100 - 1600 rpm
Bore: 126mm; Stroke: 130 mm
Displacement: 9.726 L
Compression ratio: 17 : 1
Specific fuel consumption: 195 g/kW·h
Engine oil filling quantity: 23 L
Cooling system filling quantity (long-term filling): 40 L
Thermostat opening temperature: 71 °C
Twin cylinder air compressor. Rigid fan.
|Clutch||Single dry diaphragm spring clutch, diameter 430 mm, hydraulically operating with air assistance.|
|Transmission||HW19710T, 10 forward gears and 2 reverse gears.|
Ratio:14.36; 10.66; 7.88; 5.82; 4.38; 3.28; 2.44; 1.80; 1.33; 1.00; 14.01; 3.2®
|Propeller Shaft||Double universal joint propeller shaft with gear-shaped coupling flange.|
|Front Axle||HF9. Drum brake. Steering with double T-cross section.|
|Rear Axle||HC16. Casted axle housing, central single reduction with planetary wheel reduction (hub reduction), and inter-wheel and inter-axle differential locks. Ratio : 4.8|
|Chassis||Frame: U-profile parallel ladder, all cold riveted cross members.|
Front suspension: 9 semi-elliptic leaf springs with hydraulic telescopic double-action shock absorbers and
Rear suspension: 12 semi-elliptic leaf springs with bogie spring and stabilizer.
Fuel tank: 400 L fuel tank with locking fuel cap.
Spare wheel carrier: with one spare tire.
|Steering||ZF8098, hydraulic steering with power assistance.|
|Brake||Service brake: Dual circuit compressed air brake.|
Parking brake: Spring energy compressed air operating on rear wheels.
Auxiliary brake: Engine exhaust brake.
|Tyre||Rim: 8.5-20,10 hole-steel|
Tyre: 12.00R20, 18PR
|Cabin||Standard cab without berth, all steel forward control, 55° hydraulically tiltable to the front, 2-arm windscreen wiper system with 3 speeds, laminate windscreen with casted-in radio aerial, adjustable driver's seat and rigid adjustable co-driver's seat, heating and ventilation system, stereo radio/cassette recorder, sun visor, adjustable steering wheel, air horn, 4-point support fully floating suspension and shock absorber, air conditioner, safety belt.|
|Electrics||Operating voltage: 24 V, negative grounded.|
Starter: 24 V, 5.4 KW
Alternator: 3-phrase, 28 V, 1540 W
Battery: 2 X 12 V, 165 Ah
Cigar-lighter, horn, headlamp, fog light, brake lights, indicators and reverse lamp
|Dimensions in mm||Wheelbase|
Mixer drum capacity
|3625 + 1350|
8715 X 2496 X 3850
|Weight in kg||Permissible loading capacity on chassis|
Gross vehicle weight
Front axle loading capacity
Rear axle loading capacity
16000 X 2
|Performance||Maximum speed |
Maximum grade ability
Weights, dimensions and features are given for reference and may be modified according to the choice of certain options. The manufacturer reserves the right to modify the above specifications without prior notification.
