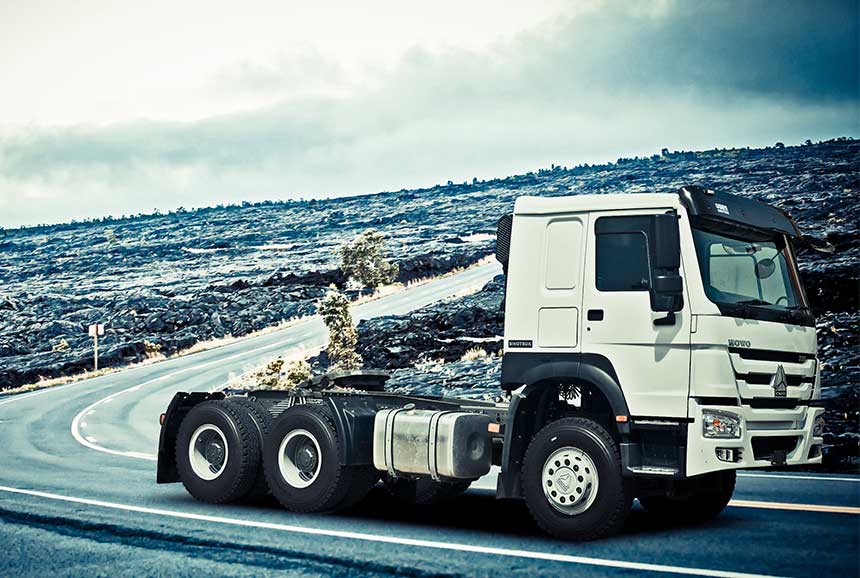

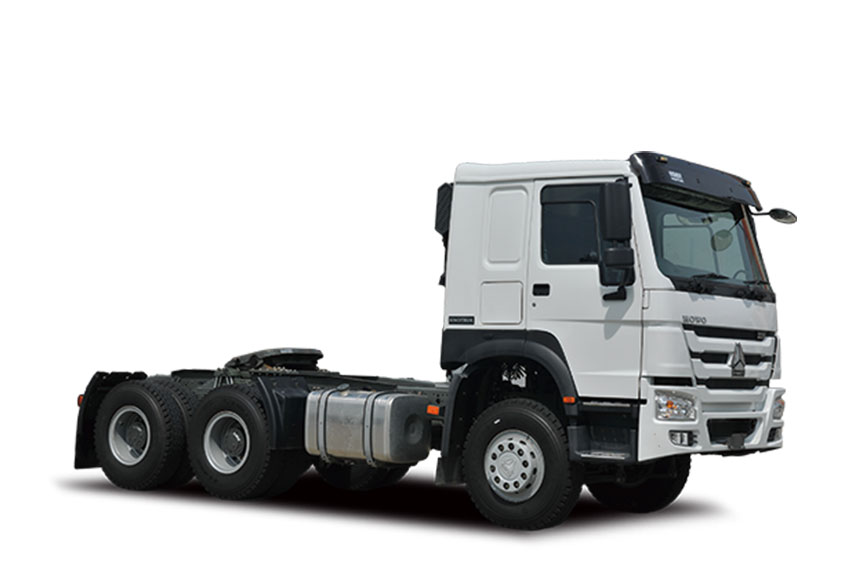

Sinotruk Howo Tractor Truck 6x4 336HP

Product Details

ModelSINOTRUK HOWO 6X4 TRACTOR TRUCKZZ4257N3247E1B
Engine

Make: SINOTRUK

Model: WD615.69, Euro II emission standard

4 stroke direct injection diesel engine

6 cylinder in-line with water cooling, turbo-charging & intercooling

Maximum output: 336 HP (247 Kw) @ 2200 rpm according to DIN

Maximum torque: 1350 Nm @ 1100 - 1600 rpm

Bore: 126mm

Stroke: 130mm

Displacement: 9.726L

Compression ratio: 17:1

Specific fuel consumption: 195g/kWh

Engine oil filling quantity: 23L

Cooling system filling quantity (long-term filling): 40L

Thermostat opening temperature: 71oC

Twin cylinder air compressor. Rigid fan

ClutchSingle plate dry diaphragm spring clutch, diameter 430(B) mm, hydraulically operating with air assistance
Transmission

HW19710, 10 forward and 2 reverse

Ratio:14.28 10.62 7.87 5.88 4.38 3.72 2.43 1.80 1.34 1.00 13.91/3.18(R)

Option:19710T

Propeller ShaftDouble universal joint propeller shaft with gear-shaped coupling flange
Front AxleHF9. Drum brake, steering with double T-cross section
Rear AxlesHC16. Casted axle housing, central single reduction with planetary wheel reduction (hub reduction) and differential locks between wheels and axles. Ratio: 5.73
Chassis

Frame: U-profile parallel ladder , all cold riveted cross members

Front suspension: 9 semi-elliptic  leaf  springs  with  hydraulic  telescopic  double-action  shock absorbers and stabilizer

Rear suspension: 12 semi-elliptic leaf springs with bogie spring and stabilizer

Fuel tank: 400 L fuel tank with locking cap

Spare wheel carrier: with one spare tire

Fifth wheel: 2.0 inch

Option: Fifth wheel: 3.5 inch

SteeringZF8098, hydraulic steering with power assistance;
Brake

Service brake: dual circuit compressed air brake

Parking brake (Emergency brake): spring energy, compressed air operating on rear wheels

Auxiliary brake: engine exhaust brakeOption: ABS

Wheel & Tyre

Rim: 8.5-20,10 hole-steel

Tyre: 12.00R20-18PR

CabLong cab, with one sleeper, all steel cab over engine, 55o hydraulically tilt forward, 2-arm windscreen wipers with 3 speeds, laminate windscreen, with casted-in radio aerial, hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat, heating & ventilation system, adjustable roof  flap,  with stereo radio/cassette recorder, sun visor, adjustable steering wheel, air horn, single berth with 4-point support fully floating suspension and shock absorber with transverse stabilizer, air conditioner, safety belt.  Option: air deflector
Electrics

Operating voltage:24V, negative grounded

Starter: 24V, 5.4KW

Alternator: 3-phrase, 28V, 1540W

Batteries: 2 X 12V, 165Ah

Cigar-lighter, horn, headlamp, fog light, brake lights, indicators and reverse lamp

Dimensions in mm

Wheelbase

Front wheel track

Rear wheel track

Front overhang

Rear overhang

Approach angle / Departure angle

Overall dimensions

3225+1350

2022

1830

1500

700

16o / 70o

6800 X 2496 X 2958 (3718 with air deflector)

Weight in kg

Dead weight

Gross vehicle weight

Front axle loading capacity

Rear axle loading capacity

Rated loading capacity at fifth wheel

9210

41000

9000

16000 X 2

15690

Performance

Maximum speed

Maximum grade ability

Minimum ground clearance

Minimum turning circle

90 km/h

33%

314 mm

15 m

Weights, dimensions and features are given for reference and may be modified according to the choice of certain options. The manufacturer reserves the right to modify the above specifications without prior notification.
