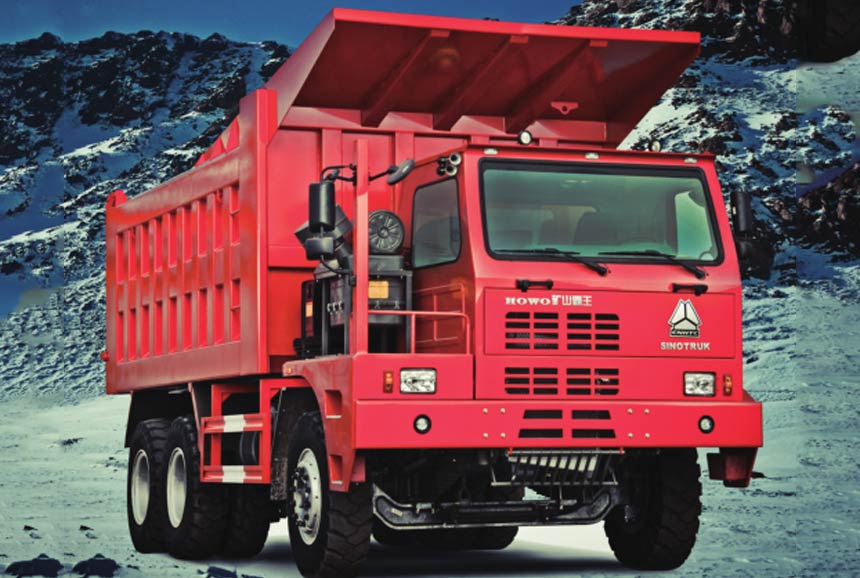

Howo Mining Truck. 6X4. 371HP

Product Details

ModelSINOTRUK HOWO 6X4 MINING TRUCK ZZ5707S3840AJ
Engine

Make: SINOTRUK

Model: WD615.47, Euro II

4 stroke direct injection diesel engine.

6 cylinder in-line, water cooling, turbocharged with intercooler.

Maximum output: 371 HP (273 kW) @ 2200 rpm

Maximum torque: 1500 Nm @ 1100 - 1600 rpm

Bore: 126 mm; Stroke: 130 mm

Displacement: 9.726 L

Compression ratio: 17 : 1

Specific fuel consumption: 195 g/kW·h

Engine oil filling quantity: 23 L

Cooling system filling quantity (long-term filling): 40 L

Thermostat opening temperature: 80 °C

Twin cylinder air compressor. Rigid fan.

ClutchSingle dry coil spring clutch, diameter 430 mm, hydraulically operating with air assistance.
Transmission

HW19710, synchromesh,10 forward gears and 2 reverse gears.

Ratio: 14.28; 10.62; 7.87; 5.88; 4.38; 3.27; 2.43; 1.8; 1.34; 1

Propeller ShaftDouble universal joint propeller shaft with gear-shaped coupling flange.
Front AxleSteering with double T-cross section.
Rear AxleCasted axle housing, central single reduction with planetary wheel reduction (hub reduction), and inter-wheel and inter-axle differential locks. Ratio: 10.47
Chassis

Frame: U-profile parallel ladder type with section of 300 x 80 x 8 mm, all cold riveted cross members and reinforced subframe.

Front suspension:10 semi-elliptic leaf springs with hydraulic telescopic double-action shock absorbers and stabilizer.

Rear suspension: 12 semi-elliptic leaf springs with bogie spring and stabilizer.

Fuel tank: 500 L fuel tank with locking fuel cap.

SteeringZF8098, hydraulic steering with power assistance.Ratio: 22.2-26.2:1
Brake

Service brake: Dual circuit compressed air brake.

Parking brake: Spring energy compressed air operating on rear wheels.

Auxiliary brake: Engine exhaust brake.

Option: ABS

Tyre

Rim: 10.2-25; 10 hole-steel

Tyre:14.00-25 Tube.

Option: 14.00R25

CabinSingle-side cab with air conditioner.
Electrics

Operating voltage: 24 V, negative grounded.

Starter: 24 V, 5.4 KW

Alternator: 3-phrase, 28 V, 1500 W

Battery: 2 X 12V, 180 Ah

Cigar-lighter, horn, headlamp, fog light, brake lights, indicators and reverse lamp

Dimensions in mm

Wheelbase

Front track

Rear track

Front overhang

Rear overhang

Approach angle

Departure angle

Overall dimensions

Body size

3800 + 1500

2741

2520

1500

1000

32°

40°

8900 X 3300 X 4340

5800 X 3100 X 1800

Weight in kg

Permissible loading capacity on chassis

Dead weight

Gross vehicle weight

Front axle loading capacity

Rear axle loading capacity

41000

29000

70000

12000

29000 X 2

Performance

Maximum speed

Maximum grade ability

Turning circle

Ground clearance

Fuel consumption

50 km/h

42%

22 m

345 mm

31 L/100km

Weights, dimensions and features are given for reference and may be modified according to the choice of certain options. The manufacturer reserves the right to modify the above specifications without prior notification.
