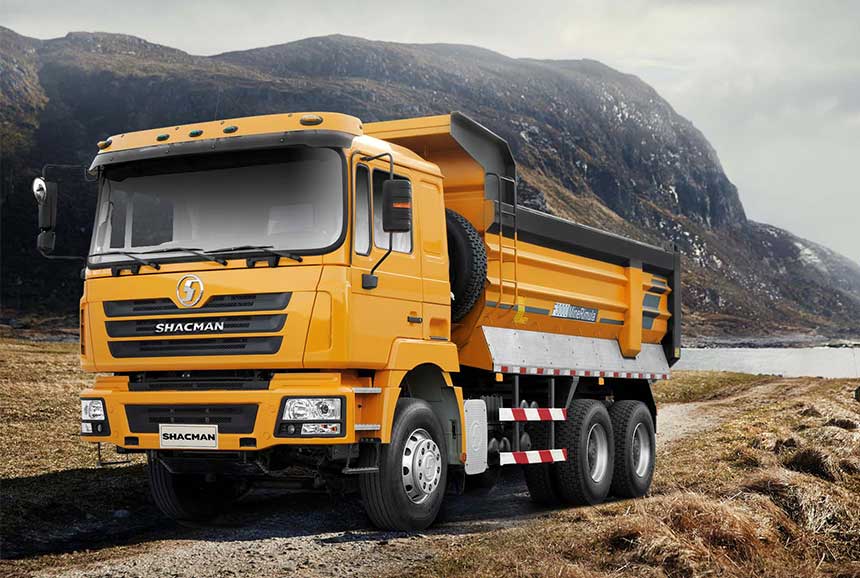

SHACMAN Tipper-F3000

Product Details

ModelSHACMAN F3000 6X4 DUMP TRUCKSX3255DT384
Engine

Make: SHACMAN

Model: Weichai, WP10.380E22, Euro II emission standard, four valves

4 stroke direct injection diesel engine

6 cylinder in-line with water cooling, turbo-charging & intercooling

Maximum output: 380 HP (280 Kw) @ 2200 rpm according to DIN

Maximum torque: 1460 Nm @ 1200 - 1600 rpm

Bore: 126mm; Stroke: 130mm

Displacement: 9.7L

Compression ratio: 17:1

ClutchEaton φ430 diaphragm clutch
TransmissionFast 10JSD180,10 forward and 2 reverse gears. Fuller technology
Front AxleMAN 9.5 ton
Rear Axle16 ton MAN double reduction drive axle, Ratio = 5.92
Fuel tank400L alloy tank
Frame850*300 (8+7)
SteeringZF technology
Brake

Service brake: Dual circuit compressed air brake

Parking Brake (Emergency brake): Air discharging with spring control

Auxiliary brake: Engine exhaust brake

Tyre12R22.5, 11 PCS
CabMAN F3000 lengthened flat roof cabin, two hydraulic main seats, one sleeper, four-point hydraulic suspension cab, steel bumper, electrical window lifter, fleet guard air filter, without A/C
Electrics

Operating voltage: 24V, negative grounded

Batteries: 2 X 12V, 165Ah

Air horn, head lamp, fog light, turning light, reverse light

Dimensions in mm

Wheelbase

Front wheel track

Rear wheel track

Front overhang

Rear overhang

Approach angle

Departure angle

Overall dimensions

Cargo body

3775+1400

2036

1860/1860

1525

1710

28o

23o

8200 X 3300 X 3400

5600 X 2300 X 1500

Weight in kg

Dead weight

Gross vehicle weight

Front axle loading capacity

Rear axle loading capacity

11200

25000

9500

16000 X 2

Performance

Maximum speed

Maximum grade ability

Minimum ground clearance

Minimum turning circle

75 km/h

35%

314 mm

18.5 m

Weights, dimensions and features are given for reference and may be modified according to the choice of certain options. The manufacturer reserves the right to modify the above specifications without prior notification.
