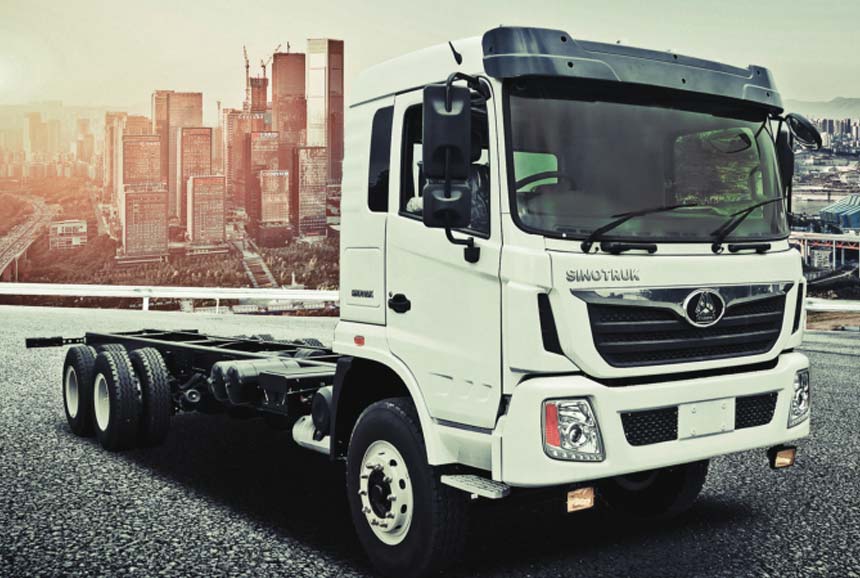

|Model||SINOTRUK 6X2 CARGO TRUCK ZZ1258K58H2C1R|
Model: YC6A260-33, Euro II.
4 stroke direct injection diesel engine.
6 cylinder in line, water cooling, turbocharged with intercooler.
Maximum output: 260 HP (191 kW) @ 2300 rpm
Maximum torque: 1000 Nm @ 1300 - 1600 rpm
Number of cylinder(s): 6
Displacement: 7.255 L
Bore X Stroke: 108 mm X 132 mm
Compression ratio: 17.5 : l
Specific fuel consumption: 196 g/kW·h
|Clutch||Single dry plate dry coil-spring clutch, hydraulically operating with air assistance.|
Plate diameter 430 mm
|Transmission||ZF5S-111GP, 9 forward gears and 1 reverse gear with synchronizer.|
Ratio: 9.73, 6.38, 4.65, 3.43, 2.50, 1.85, 1.36, 1.00, 0.73, 11.6®
|Propeller Shaft||Double universal joint propeller shaft with gear-shaped coupling flange.|
|Front Axle||Model: 153, loading capacity 6 ton, drum brake.|
|Rear Axle||Model: 457, drive through reduction and planetary reduction, loading capacity 13 ton X 2. Ratio: 6.33|
|Chassis||Frame: Double layer frame 865 x 280 x 80 x (8 + 4).|
Front suspension: Semi-elliptic leaf springs with hydraulic telescopic double-action shock absorbers and stabilizer.
Rear suspension: Semi-elliptic leaf springs with bogie spring and stabilizer with one spare wheel.
|Steering||ZF8098. Power steering.|
|Brake||Service brake: Dual circuit compressed air brake.|
Parking brake: Spring energy compressed air operating on rear wheels.
Auxiliary brake: Engine exhaust valve brake.
|Tyre||Rim: 7.50V-20 |
|Cabin||D13 cab body, hydraulically tiltable to the front, 2-arm windscreen wiper system with 3 speeds, laminate windscreen, casted-in radio aerial, adjustable driver's seat and rigid adjustable co-driver's seat, heating and ventilation system, stereo radio/cassette recorder, sun visor, adjustable steering wheel, air horn, single berth with 4-point support fully|
floating suspension and shock absorber, air conditioner, safety belt.
|Electrics||Operating voltage: 24V, negative grounded.|
Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light.
|Dimensions in mm||Wheelbase|
|5800 + 1350|
9100 X 2300 X 600
11330 X 2496 X 3750
|Weight in kg||Permissible loading capacity on chassis|
Gross vehicle weight
Front axle loading capacity
Rear axle loading capacity
13000 X 2
Maximum grade ability
Weights, dimensions and features are given for reference and may be modified according to the choice of certain options. The manufacturer reserves the right to modify the above specifications without prior notification.
