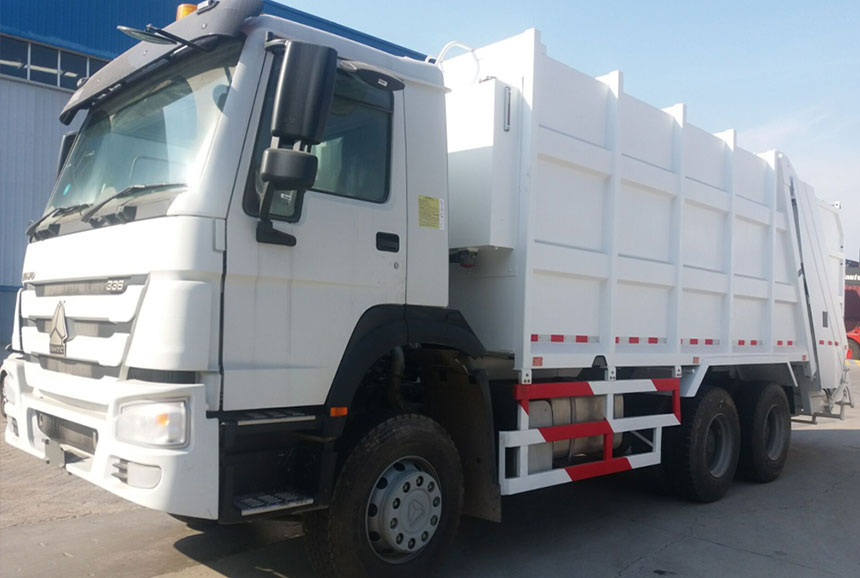

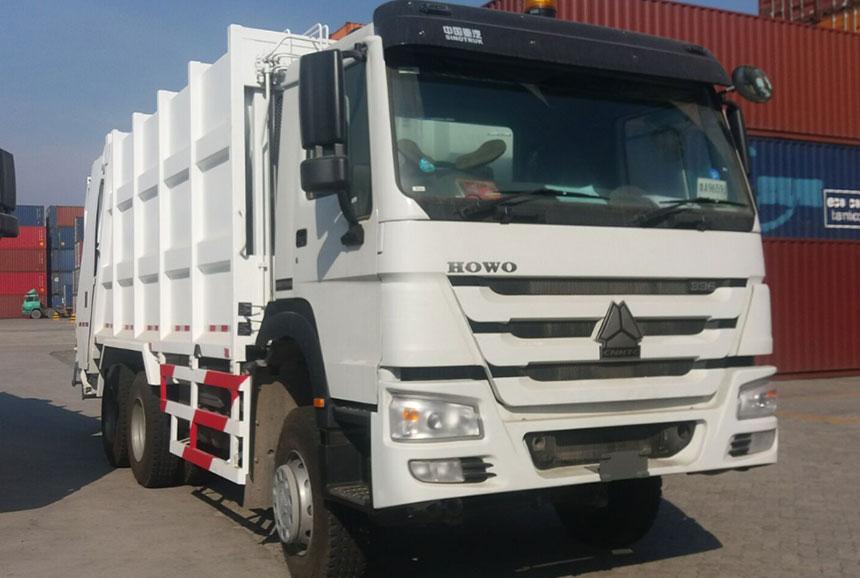

Sinotruk HOWO Compression Refuse Collector 6x4

Product Details

ModelSINOTRUK HOWO 6X4 COMPRESSION REFUSE COLLECTOR ZZ3257N3847B
EngineMake: SINOTRUK
Model: WD615.69, Euro II emission standard
4 stroke direct injection diesel engine
6 cylinder in-line with water cooling, turbo-charging & intercooling
Maximum output: 336 HP (247 Kw) @ 2200 rpm according to DIN
Maximum torque: 1350 Nm @ 1100 - 1600 rpm
Bore: 126mm
Stroke: 130mm
Displacement: 9.726L
Compression ratio: 17:1
Specific fuel consumption: 195g/kWh
Engine oil filling quantity: 23L
Cooling system filling quantity (long-term filling): 40L
Thermostat opening temperature: 71oC
Twin cylinder air compressor. Rigid fan
Option:WD615.87
ClutchSingle plate dry diaphragm spring clutch, diameter 430(B) mm, hydraulically operating with air assistance
TransmissionHW19710+HW50 PTO, 10 forward and 2 reverse
Ratio:14.28 10.62 7.87 5.88 4.38 3.72 2.43 1.80 1.34 1.00 13.91/3.18(R)
Propeller ShaftDouble universal joint propeller shaft with gear-shaped coupling flange
Front AxleHF9 Drum brake. Steering with double T-cross section
Rear AxlesHC16, drive through reduction and planetary reduction. Ratio: 5.73
ChassisFrame: U-profile parallel ladder, all cold riveted cross members
Front suspension: 10 semi-elliptic  leaf  springs  with  hydraulic  telescopic  double-action  shock absorbers and stabilizer
Rear suspension: 12 semi-elliptic leaf springs with bogie spring and stabilizer
Fuel tank: 300 L
Spare wheel carrier: with one spare tire
Option: Fuel tank 400L
SteeringZF8098, hydraulic steering with power assistance
BrakeService brake: dual circuit compressed air brake
Parking brake (Emergency brake): spring energy, compressed air operating on rear wheels
Auxiliary brake: engine exhaust brake
Option: ABS
Wheel & TyreRim: 8.5-20,10 hole-steel
Tyre: 12.00R20-18PR
Option: 12R22.5, 315/80R22.5
CabStandard cab without berth, all steel forward control, 55° hydraulically tiltable to the front, 2-arm windscreen wiper system with 3 speeds, laminate windscreen, with casted-in radio aerial, adjustable driver’s seat and rigid adjustable co-driver’s seat, heating & ventilation system, with stereo radio/cassette recorder, sun visor, and adjustable steering wheel, air horn, 4-point support fully floating suspension and shock absorber, air conditioner, safety belt.
ElectricsOperating voltage: 24V, negative grounded
Starter: 24V, 5.4KW
Alternator: 3-phrase, 28V, 1540W
Battery: 2 X 12V, 165Ah
Cigar-lighter, horn, headlamp, fog light, brake lights, indicators and reverse lamp
Cargo boxEffective volume 2 0m³, filler volume 2.5m³, multifunction mechanical arm, 4.5T winch
Dimensions in mmWheelbase
Front wheel track
Rear wheel track
Front overhang
Rear overhang
Approach angle/ Departure angle
Overall dimensions
Body size
3825+1350
2022
1830
1500
1939
19° / 23°
9900 X 2496 X 3800
20 m³
Weight in kgDead weight
Gross vehicle weight

Front axle loading capacity

Rear axle loading capacity

17000
25000
9000
16000 X 2
PerformanceMaximum speed
Maximum grade ability
Minimum ground clearance
Minimum turning circle
78 km/h
30%
314 mm
18 m

Weights, dimensions and features are given for reference and may be modified according to the choice of certain options. The manufacturer reserves the right to modify the above specifications without prior notification.
