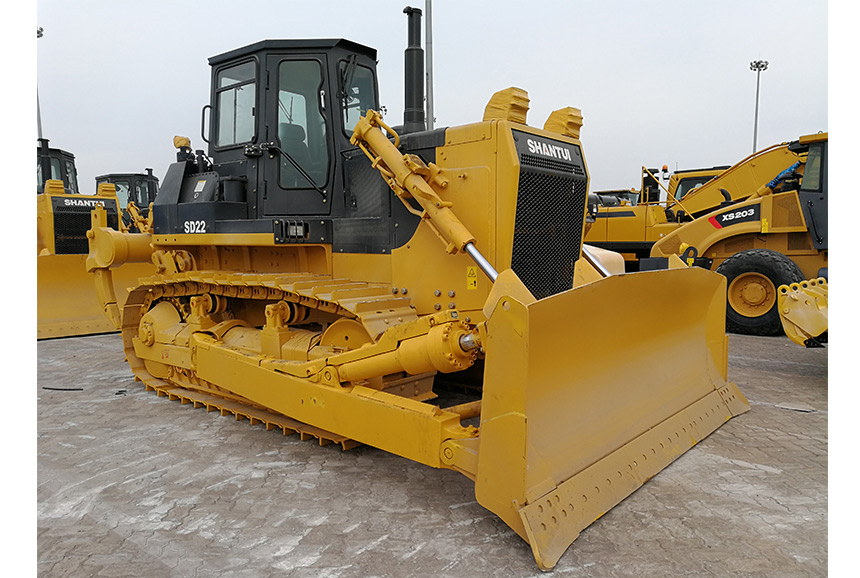

Bulldozer SD22

Product Details

Bulldozer SD22 Specifications
ENGINETYPENT855-C280 (S10)Cummins, in-line, water cooled 4-cycle,overhead valve direct injection, turbocharged diesel
Rated revolution1800rpm
Rated horsepower162KW
Cylinder numbr-bore× stroke …6-139.7mm×152.4
piston displacement…14010ml
Min fuel consumption205g/KW.h
Tank capacity450L
Max torque1030NM/1250rpm
POWER TRANSMITTING SYSTEMTorque Converter3-element 1 stage1phase
TransmissionPlanetary gear, multi-disc clutch, hydraulically connected, forced lubrication
Steering ClutchWet, multi-disc, spring loaded, hydraulically separated, hydraulic control
Steering BrakeWet, floating, direct on-off hydraulic inter-linking operation
Final drive2-stage speed reduction of spur gear, splash lubrication
UNDERCARRIAGE SYSTEMTypeSwing type of sprayed beam, suspended structure of equalizer bar
Carrier rollerseach side
Track rollers6/each side(single flange4,double flange2)(E-7/each side)
Track typeAssembled, single-tooth shoes(38/each side
Width of track shoes560mm
Pump typegear pump
Discharge262L/min (at revolution of 1800rpm)
Dozer typeStraight tilting blade Optional: Angle blade/U blade/ Semi-U blade
Blade capacity(m3)6.4 for straight tilting bladeOptional: 4.7 for angle blade/ 7.5 for U blade/ 7.0 for Semi-U blade
Min. ground clearance(mm)405
Operating weight(kg)23450
Ground pressure(MP )0.077
Blade width(mm)3725
Blade height(mm)1315
Max. drop below ground (mm)540
Max. tilt adjustment(mm)>735
Scarifier three-tooth scarifierOptional: Single-tooth scarifier

Materials and specifications are subject to change without notice.
