  • Sinotruk HOWO Truck Crane 6x4 ZZ1257N5841W - 10t

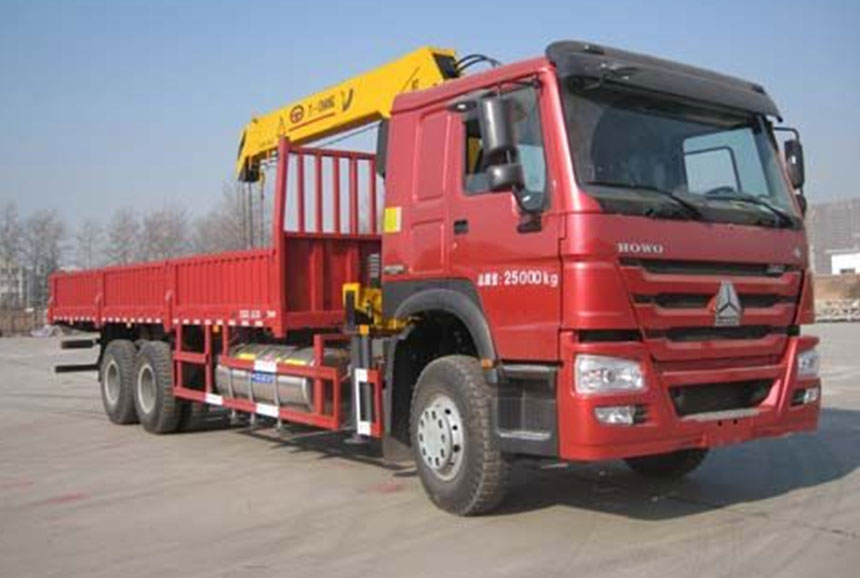

Sinotruk HOWO Truck Crane 6x4 ZZ1257N5841W - 10t

Product Details

2ModelZZ1257N5841W
EngineMake: SINOTRUK
Model: WD615.47, Euro II emission standard, 4 stroke direct injection diesel engine. 6 cylinder in-line with water cooling, turbo-charging & intercooling
Maximum output: 371 HP (273 Kw) @ 2200 rpm according to DIN
Maximum torque: 1500 Nm @ 1100 - 1600 rpm
Bore: 126mm
Stroke: 130mm
Displacement: 9.726 L
Compression ratio: 17:1
Specific fuel consumption: 195g/kWh
Engine oil filling quantity: 23L
Cooling system filling quantity(long-term filling): 40L
Thermostat opening temperature: 80℃
Twin cylinder air compressor. Rigid fan
Option: Thermostat with 71℃ opening begin. Viscous fan
ClutchSingle plate dry diaphragm spring clutch, diameter 430mm, hydraulically operating with air assistance
TransmissionHW19710+HW70 PTO ,10 forward and 2 reverse
Ratio:14.28 10.62 7.87 5.88 4.38 3.27 2.43 1.80 1.34 1.00 13.91/3.18(R)
Option: HW15710, HW19710T
Propeller ShaftDouble universal joint propeller shaft with gear-shaped coupling flange
Front AxleSteering with double T-cross section
Rear AxlePressed axle housing, central single reduction with planetary wheel reduction (hub reduction), and differential locks between wheels and axles
Ratio: 4.42          Option:4.8; 5.73
ChassisFrame: U-profile parallel type with section of 300 x 9 x 8mm and reinforced sub frame, all cold riveted cross members
Front suspension: 10 semi-elliptic leaf springs with hydraulic telescopic double-action shock absorbers and stabilizer
Rear suspension: 12 semi-elliptic leaf springs with bogie spring and stabilizer
Spare wheel carrier: with one spare wheel
Fuel tank: 400 L fuel tank with locking cap
SteeringZF8098, hydraulic steering with power assistance
Ratio: 22.2 - 26.2 : 1
BrakeService brake: dual circuit compressed air brake
Parking brake (Emergency brake): spring energy, compressed air operating on rear wheels
Auxiliary brake: engine exhaust brake
Option: ABS
Wheel & TyreRim: 8.5-20, 10 hole-steel
Tyre: 12.00R20 Tubeless
Option:12.00-20; 11.00-20; 11.00R20; 12R22.5; 315/80R22.5
CabLong cab, all steel forward control, 55°hydraulically tilt able to the front, 2-am windscreen wiper system with 3 speeds, laminate windscreen, with casted-in radio aerial, hydraulically damped adjustable driver′s seat and rigid adjustable co-driver′s seat, heating& ventilation system, with stereo radio/cassette recorder, sun visor, and adjustable steering wheel, air horn, single berth with 4-point support fully floating suspension and shock absorber with transverse stabilizer, safety belt, air conditioner, adjustable roof flap.
Option: air deflector
ElectricsOperating voltage: 24V, negative grounded
Starter: 24V, 5.4KW
Alternator: 28V, 1540W
Battery: 2 X 12V,165Ah
Cigar-lighter, horn, headlamp, fog light, brake lights, indicators and reverse lamp
CraneModel: SQ10SK3Q
Lifting capacity: 10000 kg
Rotation angle: 360° rotation
Dimensions in mmWheelbase
Front wheel track
Rear wheel track
Front overhang
Rear overhang
Approach angle
Departure angle
Overall dimensions
Body size
5825+1350
2022
1830
1500
3288
16°

11963 X 2496 X 3900
8300 X 2326 X 600 mm
Weight in kgPermissible loading capacity on chassis
Dead weight
Gross vehicle weight
Front axle loading capacity
Rear axle loading capacity
20420
15600
32000
9000
16000 X 2
PerformanceMaximum speed
Maximum grade ability
Minimum ground clearance
Minimum turning circle
Fuel consumption
97 km/h
30%
314 mm
21 m
32 L/100km

Weights, dimensions and features are given for reference and may be modified according to the choice of certain options. The manufacturer reserves the right to modify the above specifications without prior notification.
